SlimLine Elite steel-look window

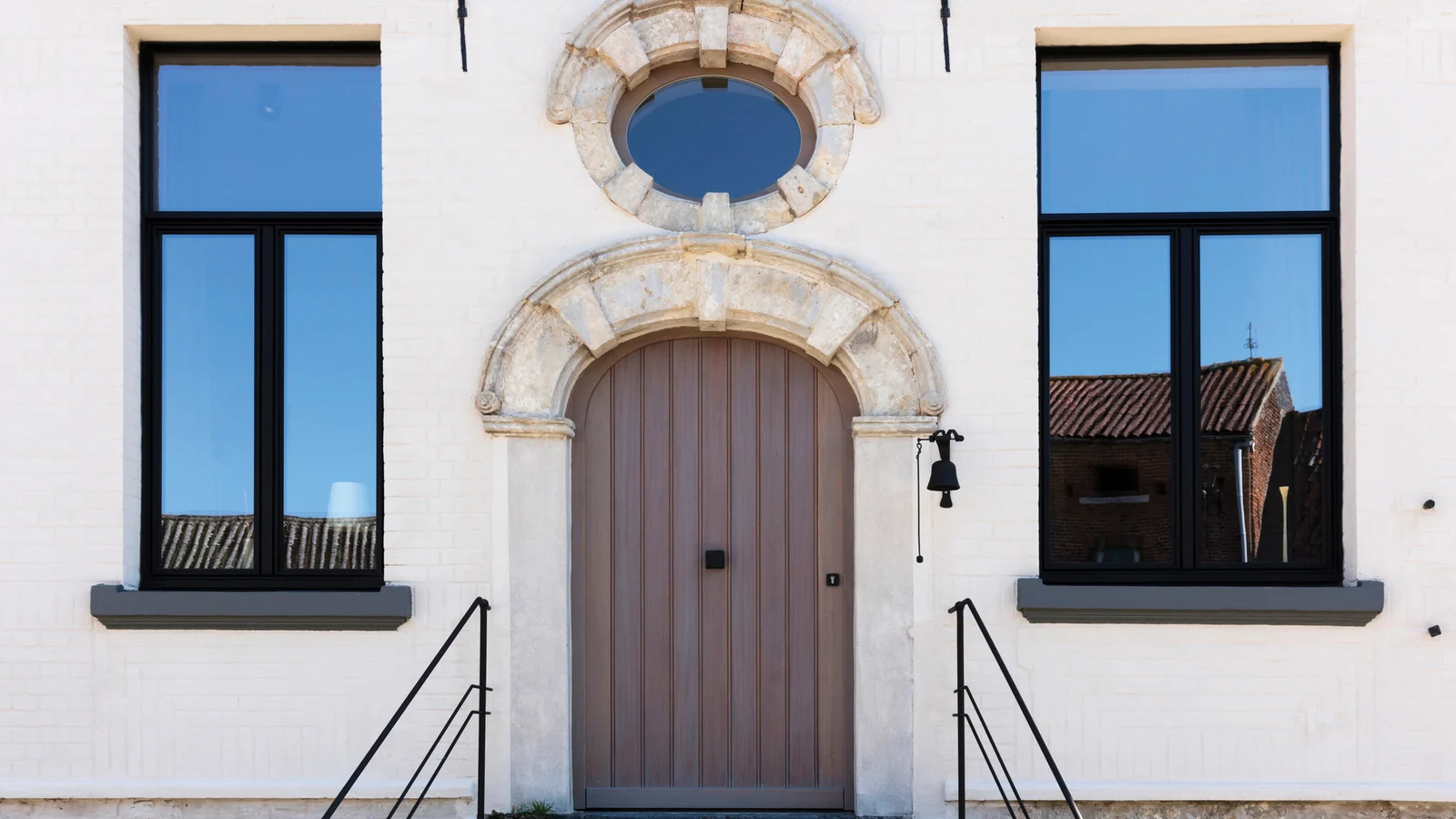

Product photo
System cross-section

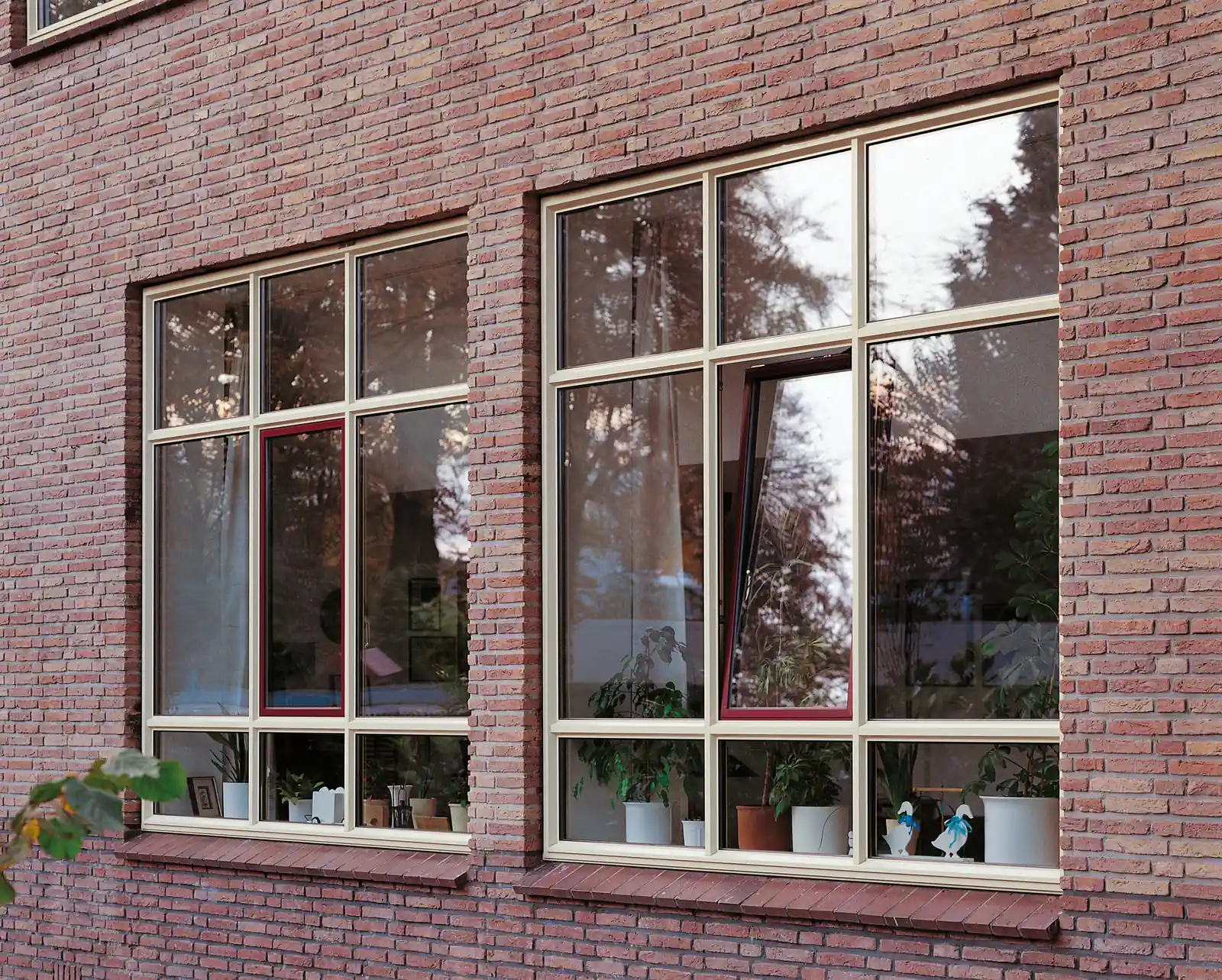

Product photo
Photos are illustrative and not necessarily this exact system.
Aluminum · No. 05 · Heritage
The steel-window look, NFRC certified.
NFRC certified · U-factor from 0.23 · Inswing or outswing
SlimLine Elite is built on Reynaers SlimLine 38, an aluminum system designed from the start to look like narrow steel profiles. It opens inward or outward, comes in distinct design variants, and carries an NFRC certification. For a steel-look project that has to pass a plan review with a tested number, it's our first suggestion.
Design variants
SlimLine 38 looks include Classic (traditional stepped profile), Ferro (the closest to rolled steel) and Cubic (square, modern). Concealed hinges and concealed drainage keep the outside clean.
Inswing or outswing
Most European windows open inward. SlimLine Elite also opens outward, the way original steel casements did. That matters on renovations where the interior has deep sills, radiators or built-ins in the way, and on facades where the outward-opening look is part of the history. See outswing casement windows.
If a steel-look window has to pass a plan review, start with SlimLine.
Tested performance
Product data lists air tightness class 4, water tightness class 9A (600 Pa), wind load class C4 and burglar resistance to PAS 24 / RC2, all European test classes. Sound reduction is up to 45–47 dB with acoustic glass. A nailing-fin accessory and install guide exist for North American framing.
SlimLine Elite specifications
Why choose it: NFRC certified · inswing and outswing · strong steel look · well-documented European test classes.
Trade-offs: narrow max sash width (about 3′11″) · premium price · thinner glass range than MB-86N.
MB-Ferroline Pro · MasterLine 8 Elite · Steel-look guide
Who makes SlimLine 38?
Can SlimLine Elite open outward?
Is it NFRC certified?
Planning a steel-look project?
Send elevations. We'll suggest a variant and check sizes.
Specifications
Performance
- U-factor
- from 0.23 Btu/h·ft²·°F
- SHGC
- 0.16–0.53
- Sound
- up to 45 dB (European Rw, not STC; system data)
- NFRC rating
- Certified
- European test classes
- Air 4 · Water 9A · Wind C4 · RC2
Construction
- System
- Reynaers SlimLine 38
- System depth
- 3.0–3.9″
- Chambers / gaskets
- 3 / 3
- Glass thickness
- 15–55 mm, double or triple
- Size range
- H 23.6″–9′10″, W 17.7″–3′11″, up to 170 kg per sash
Options
- Variants
- Classic, Ferro, Cubic
- Opening
- Inswing and outswing; fixed
- Options
- Concealed hinges, concealed drainage, flyscreen, glass corner
- Nailing fin
- Available
Ordering
- Lead time
- 3–4 months; made to order and shipped by sea freight
- Warranty
- 20-year limited manufacturer warranty; 3-year installation warranty. See warranty terms
