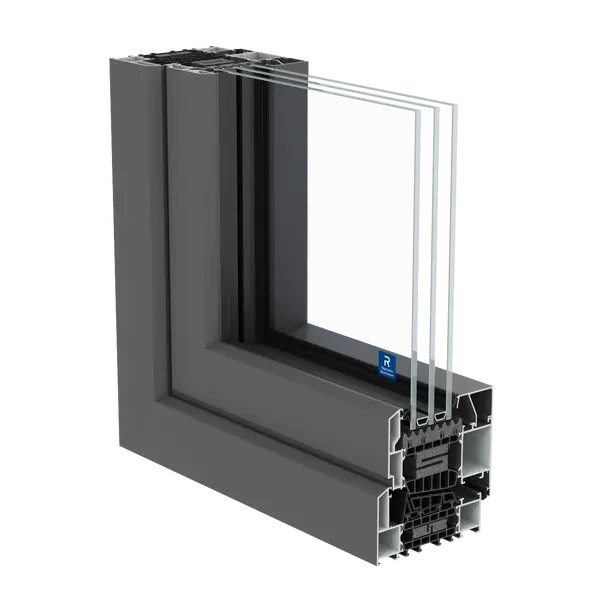

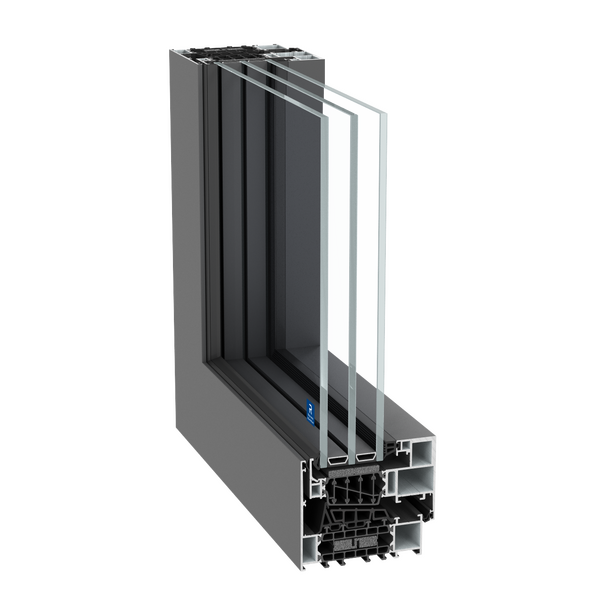

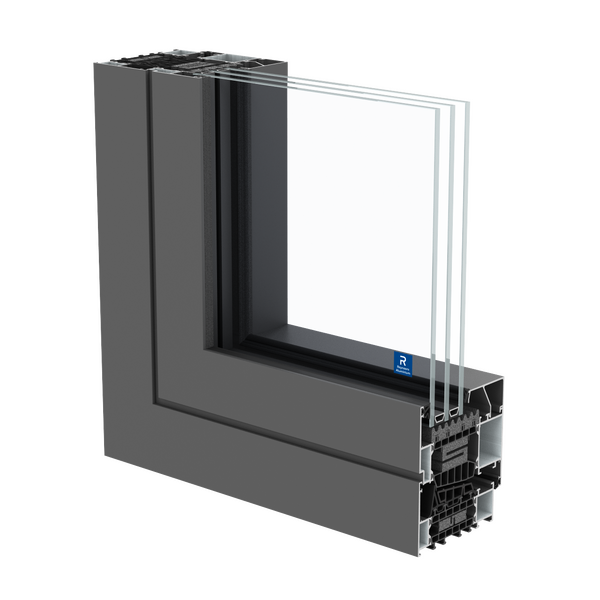

MasterLine 10 Elite
The ultimate thermal envelope for Passive House construction
MasterLine 10 aluminium window system was engineered for energy-efficient and passive buildings, combining excellent thermal performance with a minimalist aesthetic. Thanks to its design, it meets the needs of contemporary architecture while offering robust functionality.
The system also adapts to both individual homes and larger residential or commercial projects. In addition, designers and architects appreciate its flexibility and broad application possibilities.
Performance
- U-Factor: from 0.15 Btu/hft²F
- SHGC: 0.14 – 0.38
- Noise Reduction: Up to 47 dB
Characteristics
- Sharp edged, minimalist lines with slim profiles
- P-700 Light: Version with reduced hash height.
- 6 chambers
- 3 gaskets
- Frame depth: 2.9″ (74mm)
- Glazing: 24-50mm.
- Wide range of colors
- NFRC Certification pending
- Optional attachable nailing fin
Benefits
- Space-Saving Design: Slim profiles maximize glass area for light-filled spaces.
- Energy Efficient: High thermal insulation ensures reduced energy costs.
